GN 970 Brackets

Aluminium or steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Drawn steel with sharp edge cut, burnished:

  • GN 970-STB-A: without holes.
  • GN 970-STB-B: with holes.
  • GN 970-STB-C: with holes and slotted holes.

Aluminium matte finish:

  • GN 970-ALM-A: without holes.
  • GN 970-ALM-B: with holes.

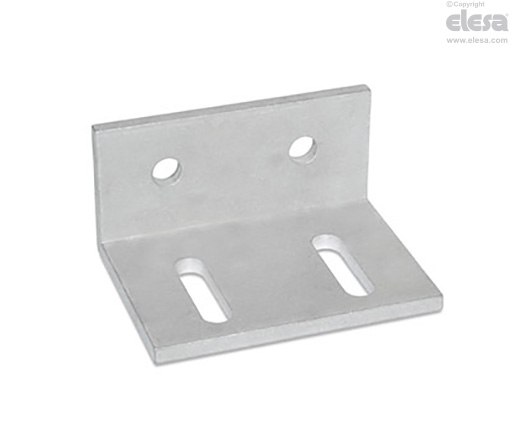

  • GN 970-ALM-C: with holes and slotted holes.
General information

Features and applications

GN 970 brackets are used for the connection and right angle fixing of panels or covers.

GN 970-A brackets (without holes) are intended for fixing by welding using specific drilling templates.

GN 970-B brackets have 2 or 4 holes depending on the length l1.

GN 970-C brackets have 1 hole and 1 slotted hole or 2 holes and 2 slotted holes depending on the length l1.
