GN 614 Ball spring plungers

Smooth body, technopolymer or brass

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Spring

AISI 631 stainless steel.

Standard executions

  • GN 614-KU: Acetal resin based technopolymer body (POM) blue, AISI 420C hardened stainless steel ball.
  • GN 614-KD: Acetal resin based technopolymer body (POM) blue, acetal resin based (POM) technopolymer ball white.
  • GN 614-MS: brass body, AISI 420C hardened stainless steel ball.

Suggested tolerance for plunger housing hole d1 = H7.

Working temperature

From -30°C to +50°C.

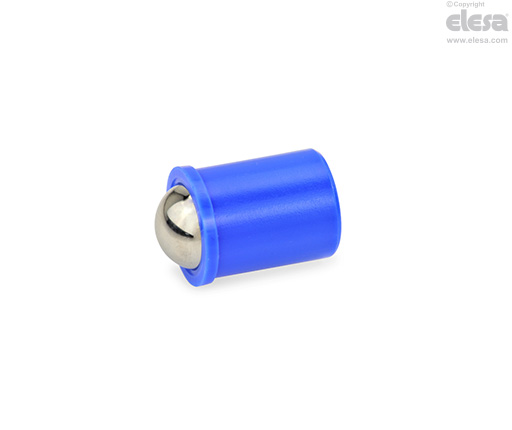

GN 614-KU - Technopolymer body, AISI 420C stainless steel ball
Accessories

Accessories

To optimise the use of GN 614 smooth ball spring plungers, have been designed holders for spring plungers GN 614.1.
