GN 723.3 Base flanges

for GN 723.4 control knobs, aluminium

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Anodised aluminium black colour.

Triangular index

Laser-engraved (white perimeter).

Standard executions

H8 reamed hole.

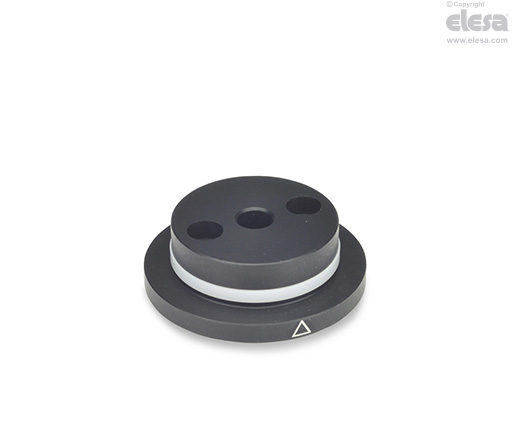

  • GN 723.3-A: flange with NBR synthetic rubber friction ring.
  • GN 723.3-B: flange without friction ring.
General information

Applications

GN 723.3 flanges are designed to optimize use of knurled control knobs GN 723.4 GN 723.4.
