GN 7072.2
Dismountable split set collars
with axial mounting holes, stainless steel
Main specifications
Standard executions
Sintered AISI 316 LHC stainless steel.
Clamping assembly by means of two AISI 304 stainless steel screws, cylindrical head with hexagon socket.
Threaded pass-through hole d3 when d1 = 30 ÷ 36.
Threaded blind hole d3 when d1 ≥ 42.

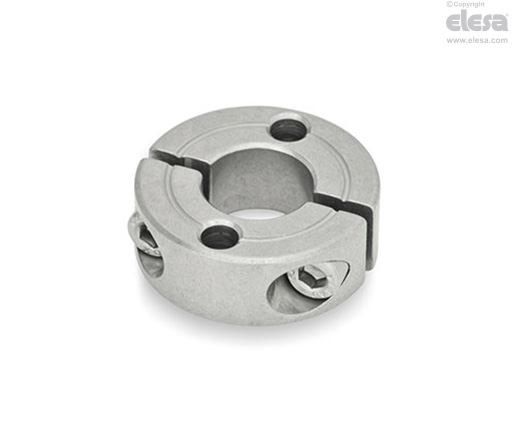

- GN 7072.2-A: with two axial plain pass-through holes.
- GN 7072.2-B: with two axial holes for cylindrical-head screws.
- GN 7072.2-C: with two axial threaded pass-through holes.
General information
Features and applications

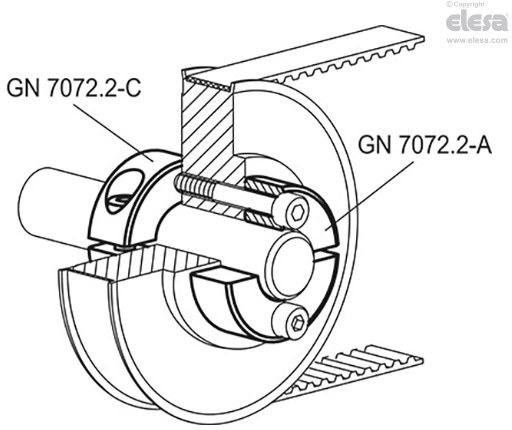

GN 7072.2 dismountable split set collars are assembled and fixed to the shaft by tightening the screw properly. The pass-through holes allow the axial fixing of shafts to wheels, pinions or machine bodies.
Compared to the single-body set collars, the dismountable split set collars can be positioned on the shaft without having to insert them from the end.
The clamping screws d3 may be replaced by clamping kit GN 311.
Technical data
Assembly on h11 tolerance shafts.
