DIN 6319 Concave and convex washers

Steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Standard executions

Case-hardened steel (hardening depth 0.2 - 0.4 mm), hardness (550 + 100) HV 10:

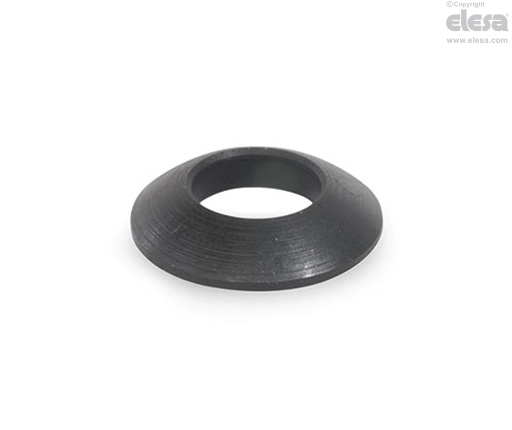

  • DIN 6319-C: convex washer.
  • DIN 6319-D: concave washer with d3 = d2.

Hardened and tempered steel, hardness (350 +80) HV 30:

  • DIN 6319-G: concave washer with d4 > d2.
General information

Features and applications

DIN 6319 concave and convex washers are suitable for locking mechanical parts on non-parallel surfaces.
