VC.308

Lever latches

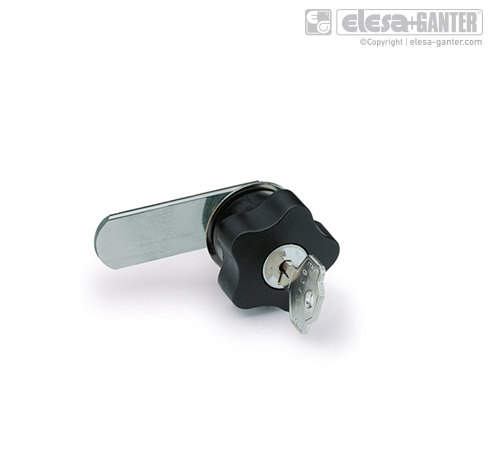

Lock with different combinations

Knob

High-resilience polypropylene based (PP) technopolymer.

Standard executions

• Lock with stainless steel front plate, movement of the knob at 90°.

• Two nickel-plated brass keys, removable in two positions at 180° (locked or unlocked position).

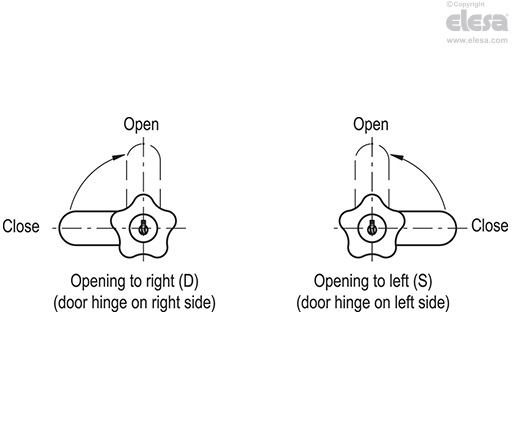

• Opening to the right side (D) or left side (S).

• Stator and rotor in Zamac.

• Locking nut in brass.

• Spring washer in zinc-plated steel.

• Positioning washer in zinc-plated steel, thickness 1.2 mm to be welded to the metal sheet of the door for thin thickness.

• Flat closing lever in zinc-plated steel.

• VC.308: lock with 400 different combinations. Each lock has a key with different combination.

• VC.308-U: lock with one combination. All locks have the same combination and can be opened with the same key.

• VC.308-M: lock with 160 different combinations and master-key: each lock has a different combination and relative key. Two master-keys, which open all of them, are supplied for every purchase order.

• VC.308-SS: without lock. The knob can be used for opening both to the right or to left side.
