CT-FG Wing screws

With flange, technopolymer

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Standard executions

  • CT-FG-B: brass boss, threaded blind hole.
  • CT-FG-p: zinc-plated steel threaded stud, chamfered flat end according to UNI 947 : ISO 4753 (see Technical data).

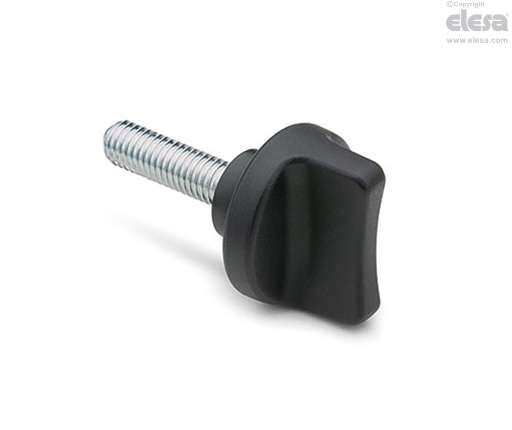

  • CT-FG-SST-p: AISI 304 stainless steel threaded stud, chamfered flat end UNI 947 : ISO 4753 (see Technical data).
General information

Features and applications

These wing knobs allow high tightening torque values.

The flange allows for a more secure grip, while the elongated hub increases the distance from the fixing surface.
