DOWNLOAD ELESA CAD MODELS

Directly from the technical datasheets. For all product codes. In multiple formats.

Reducing design time and costs is essential to the mechanical engineering community and is considered a priority.

Having free access to models in the most common CAD formats of the numerous components to be included in the projects, represents a concrete advantage for designers.

ELESA offers a service that allows you to save time by not having to manually create your CAD models.

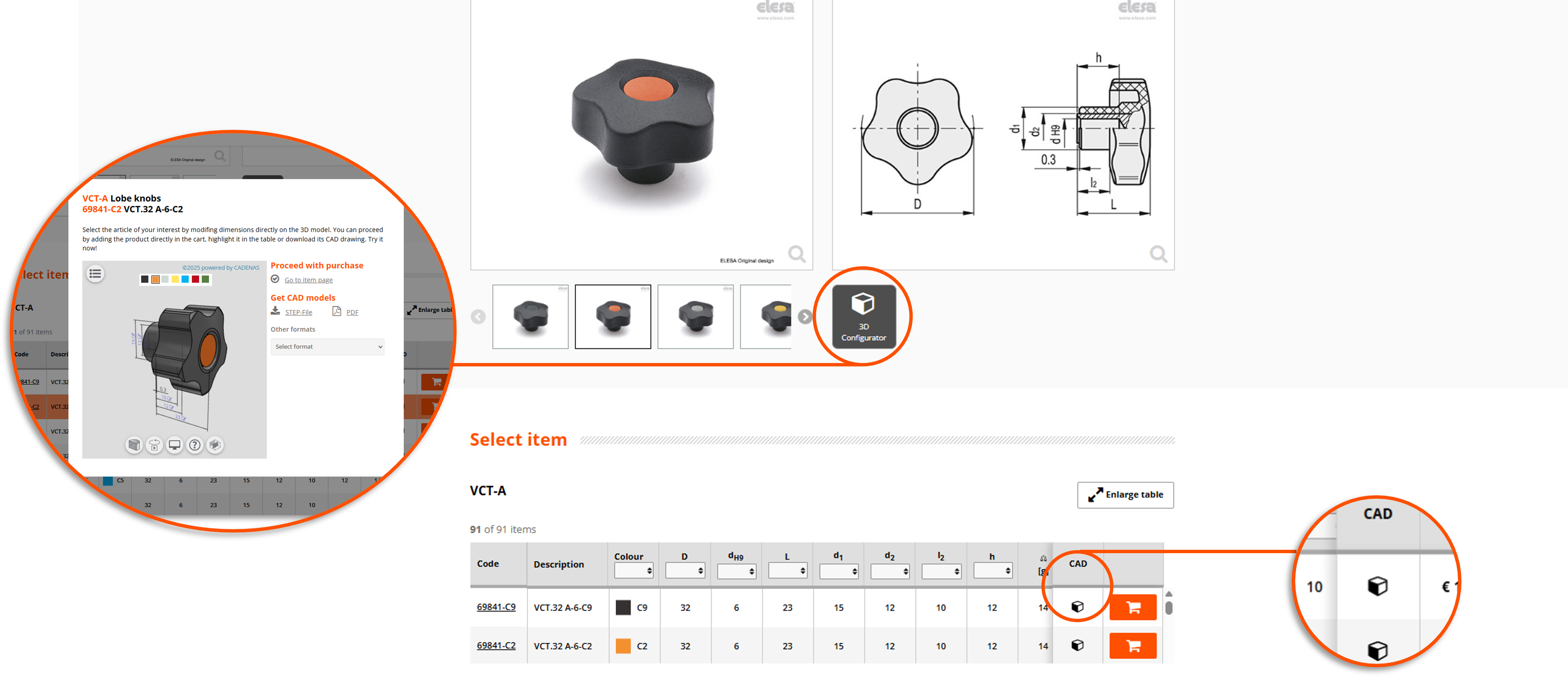

Directly from the product page, in just a few steps you can:

  • Configure your standard component with an automatic dimensioning system and select the color variants directly on the model, using the new interactive configurator.

  • Direct download of STEP and PDF files.

  • Get 3D models by email - if you are a «guest user».

  • Download CAD models in different formats with Part2CAD to easily integrate them into your designs, without the need to save them temporarily.

  • Add the selected product directly into the cart.

Over 75.000+ standard product codes available:

  • in neutral formats (SAT / STEP / IGES / DXF)
  • in native formats of CAD systems including AutoCAD, SolidWorks, Inventor, Catia, Solid Edge, Pro/E, ME10, NX.
Golden quality logo

“Golden Quality Seal” Award received from CADENAS GmbH for the high-quality smart 3D engineering data.
