GN 742.5 Threaded plugs

AISI 316L stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Types

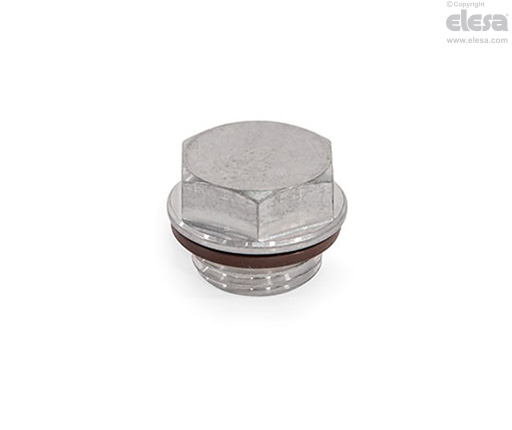

  • Type O: neutral
  • Type E: with DIN fill symbol
  • Type A: with DIN drain symbol

Identification no.

  • No. 1: Without vent drilling

Stainless steel AISI 316L

Precision turned, plain finish

Ring

Fluoro-elastomer (FPM / FKM)

  • Brown
  • Temperature resistant up to 180 °C
General information

Features and applications

Stainless steel threaded plugs GN 742.5 can be used in particularly aggressive environments thanks to the material used.

The seal is embedded in a radial recess and thus cannot be lost, squeezed out or overloaded during tightening.

The outer diameter d1 of the stainless steel threaded plugs GN 742.5 is matched to screw-in holes for pipe fittings according to DIN 3852.

On request

On request

  • Other thread sizes
  • With dipstick
  • With acrylonitrile butadiene rubber (NBR) seal GN 741.5
