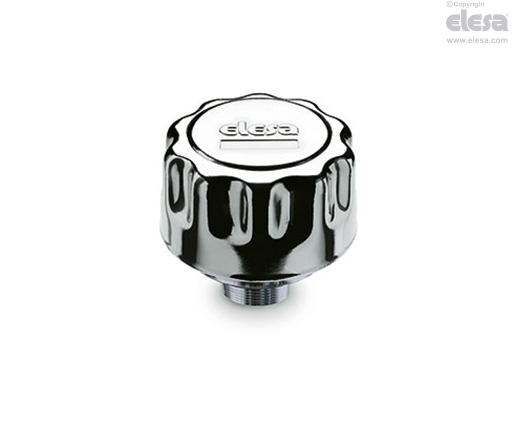

SMN. Breather caps

threaded connector, steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

  • Cover: steel sheet, with chrome plating superficial treatment.
  • Flange: zinc-plated steel sheet.
  • Threaded connector: zinc-plated steel.

Packing ring

NBR synthetic rubber flat washer.

Ring-shaped air filter

Tech-foam 10 µ or 40 µ.

Filter setting spring

Zinc-plated steel.

Standard executions

  • SMN-F10: air filtration 10 µ.
  • SMN-F40: air filtration 40 µ.

Maximum continuous working temperature

100°C.

General information

Technical data

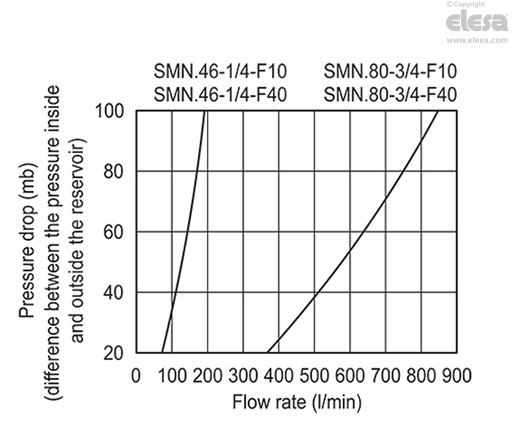

Air flow rate for the different executions of breather caps can be obtained from the diagram on the basis of the difference of air pressure inside and outside the reservoir.

SMN-F10 - Air filtration 10 µ
Inch sizes available on request
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
