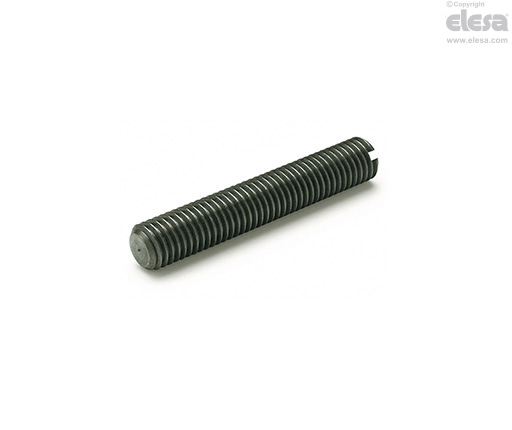

GN 551.1 Threaded studs

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Black-oxide steel, class 5.8 (tensile strength 500 N/mm²).

General information

Features and applications

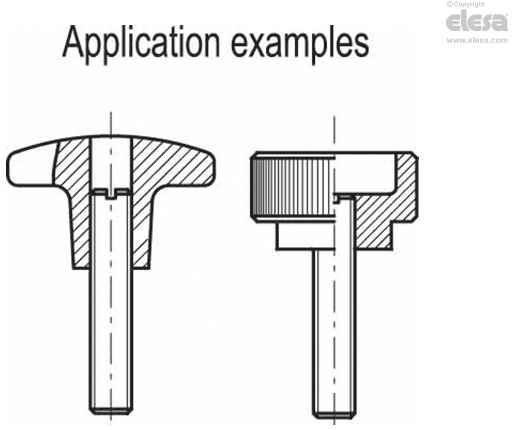

GN 551.1 threaded studs can be coupled to clamping knobs with tapped bosses, when a clamping nut has to be changed to a clamping thread screw.

GN 551.1 - Threaded studsﾠ
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
Ganter
