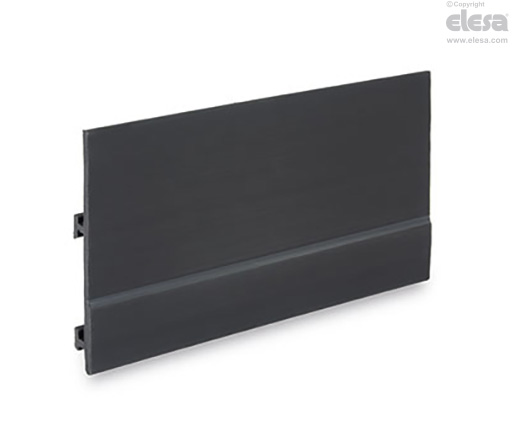

GLC-20

Wide guide rails

With ledge 20 mm

Features and applications

GLC guide rails are used for the side guide of products with different vertical dimensions on conveyor belts.

High molecular weight polyethylene (HMWPE) has a high wear resistance; it is particularly suitable for high-speed movements due to its low coefficient of friction.

Depending on the product to transport, it is recommended to use:

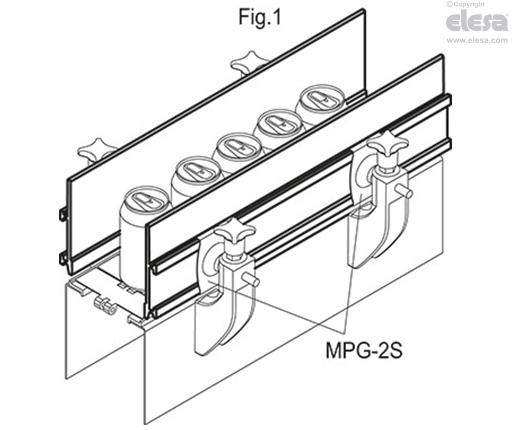

• GLC-20: for the guide of products with limited vertical dimensions (Fig.1);

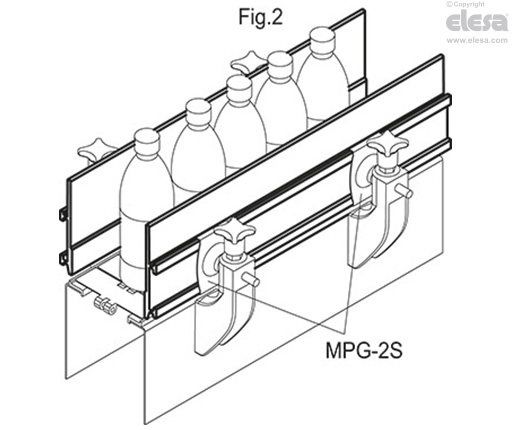

• GLC-40: for the guide of products with important vertical dimensions (Fig.2);

Supplied in bars of 1500 or 3000 mm length.





Special executions on request

Guide rails in different colours.

Accessories on request

Guide rail clamps MPG-2S.
