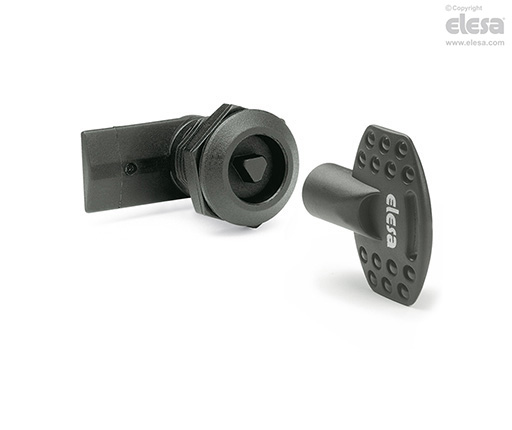

CQT.AE-V0 Lever latches
with key, technopolymer
Main specifications
Material
Stator, rotor, closing lever and nut (M22x1.5) in glass-fibre reinforced polyamide based (PA) technopolymer certified self-extinguish UL-94 V0, black colour, matte finish.
Packing ring
SBR rubber.
Internal toothed washer
AISI 304 stainless steel
Self-tapping screw
AISI 304 stainless steel
Key
Polyamide based (PA) technopolymer.
Rotation
90°.
IP protection
IP 65 protection class according to EN 60529.
Standard executions
- CQT/A: mark for two-wings key.
- CQT/T: mark for triangular key.
General information
Technical data
The "V0" certification in accordance with UL-94 V (Underwriters Laboratories) (see Technical data) indicates that on a plastic test sample with specific shape and dimensions, in the vertical position, the flame is extinguished within 10 seconds, without generating incandescent drops.
Other executions
Special executions on request
- Cylindrical body of the closing lever in other dimensions.
- Latches and keys supplied separately.
