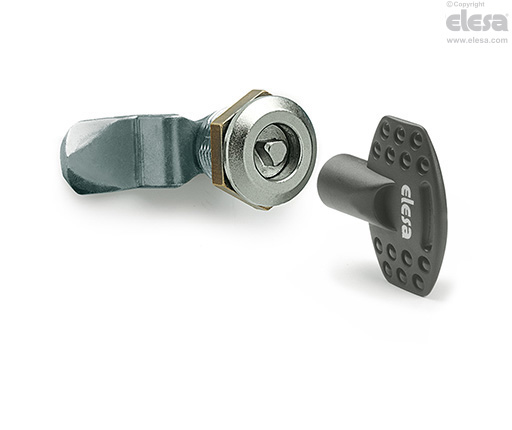

CQ. Lever latches

with key, zinc alloy



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Stator and rotor

Nickel-plated zinc alloy.

Nut

For threaded stator M19x1 = brass.

For threaded stator M22x1.5 = zinc-plated zinc alloy.

Shaped closing lever

Zinc-plated steel.

For threaded stator M19x1, thickness = 2.5 mm.

For threaded stator M22x1.5, thickness = 3 mm.

Spring washer

Zinc-plated steel.

Packing ring

For threaded stator M19x1 = PVC.

For threaded stator M22x1.5 = SBR rubber.

Screw

M5x8 zinc-plated steel.

Key

Polyamide based (PA) technopolymer.

Rotation

90°.

IP protection

IP 65 protection class, according to EN 60529

Standard executions

  • CQ/A: two-wing groove for key.
  • CQ/T: triangular groove for key.

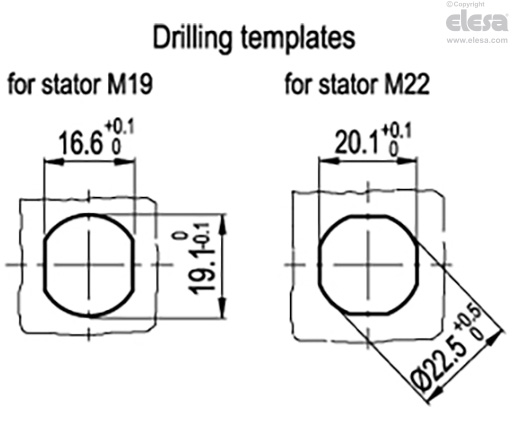

CQ. - Lever latches
Other executions

Special executions and accessories

  • Closing levers in other dimensions.
  • Latches and keys supplied separately.
  • Brass threaded extension for prolonged positioning of the lever (code 421137 C.PQ M5/58).
CQ. - Lever latches
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
