GN 612.1 Mounting flange

Steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Black-oxide steel.

Grub screw

Black-oxide steel with brass bolt.

Standard executions

  • GN 612.1-A: with pass-through holes for mounting cylindrical-head screws with hexagon socket coaxial to the plunger. -

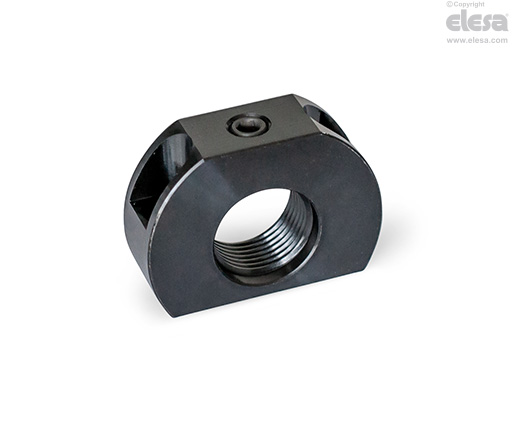

  • GN 612.1-B: with pass-through holes for mounting cylindrical-head screws with hexagon socket perpendicular to the plunger.
General information

Features and applications

GN 612.1 mounting flanges allow further possibilites of fastening GN 612/GN 712/GN 712.1/GN 613 indexing plungers (6, 8 and 10 dimension).

Other executions

Special execution on request

AISI 303 stainless steel mounting flanges.
