GN 615.7 Ball spring plungers

with switch, steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Threaded body

Hardened nickel-plated steel.

Ball

Hardened steel.

Hexagon nuts

Nickel-plated steel.

Toothed washer

Hardened nickel-plated steel.

Spring

Stainless steel.

Working temperature

From -10°C to +80°C.

Standard executions

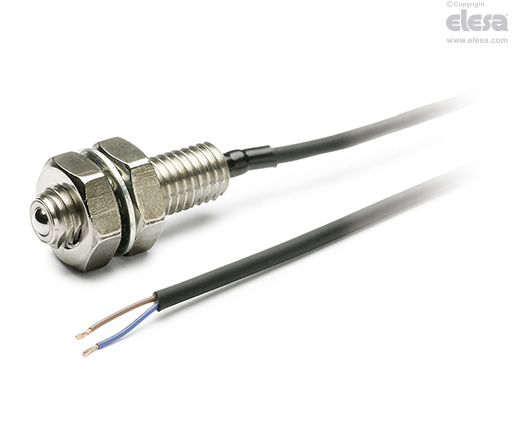

  • GN 615.7-O: black colour sheath for normally closed contact.
  • GN 615.7-S: grey colour sheath for normally open contact.
General information

Features and applications

GN 615.7 threaded ball spring plungers are suitable for locking or releasing a device by using a built-in electrical switch.

Electrical characteristics of the switch

Power supply: 20 mA DC

Voltage range: 12 ÷ 24 V DC

Protection class: IP 40 according to table EN 60529.

Supply cable: Ø 3 mm, two-phase, length 2 metres

Average switch life-spam: 10 millions switchings

Technical data

Maximum tensile strength 20 N.
