GN 614-NI Ball spring plungers

Smooth body, stainless steel

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Body

AISI 305 stainless steel.

Suggested tolerance for plunger housing hole d1 = H7.

Ball

AISI 420C hardened stainless steel.

Spring

AISI 631 stainless steel.

Standard execution

  • GN 614-NI: normal end-force spring.
  • GN 614-NIL: light pressure spring, body with a longitudinal marking.
  • GN 614-NIS: reinforced pressure spring, body with two longitudinal markings.

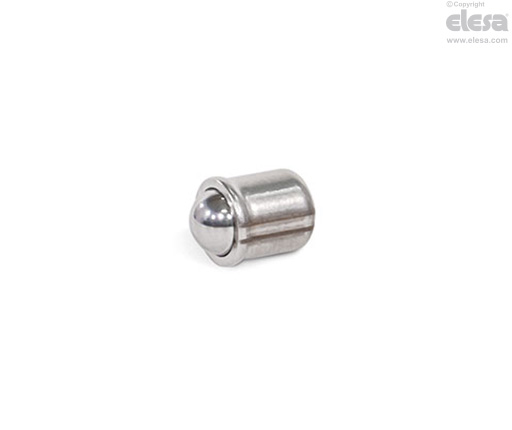

GN 614-NIS - Heavy end-force spring
Accessories

Accessories

To optimise the use of GN 614-NI smooth ball spring plungers, have been designed Holders for spring plungers GN 614.1.
