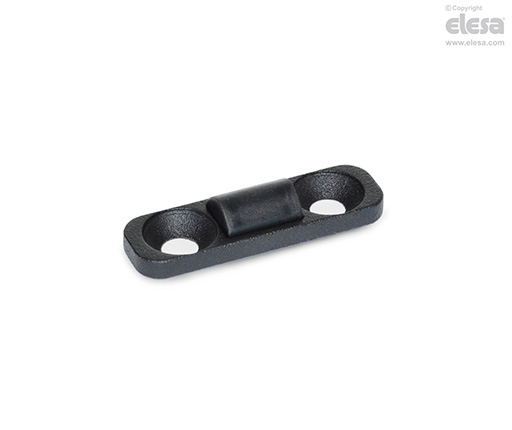

PCM-LS Limit stop spacers for hinges
Ganter Norm GN 2374Steel
Main specifications
Material
Cast zinc-plated steel, epoxy resin coating, RAL 9005 black colour, matte finish.
Stop limit element
Rubber NBR, hardness 85 tolerance ±5 Shore A, black colour.
Maximum working temperature
120°C.
General information
Features and applications

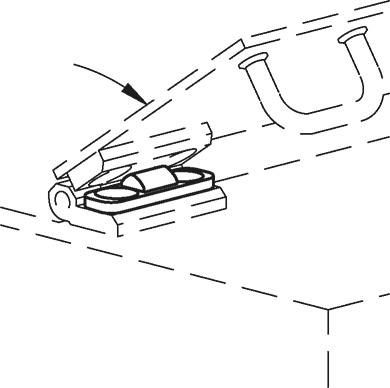

PCM-LS limit stop spacers are a useful accessory for the hingesﾠCFM.ﾠ/ﾠCMM.ﾠ/ﾠCMM-SSTﾠ/ﾠCMMY.ﾠto limit the rotation angle to 150°.
ﾠ
ﾠ
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
