CMM-AL Hinges
Ganter Norm GN 237Aluminum
Main specifications
Material
Anodised aluminium
Colour
Natural, matte finish.
Rotating pin
AISI 304 stainless steel.
Standard execution
Pass-through holes for countersunk head screws.
General information

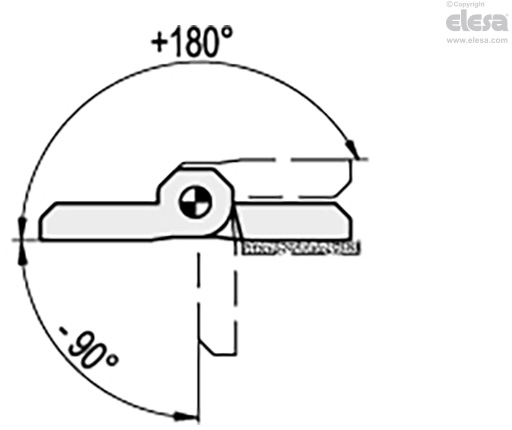

Rotation angle (approximate value)
Max 270° (-90° and +180° being 0° the condition where the two interconnected surfaces are on the same plane).
Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
