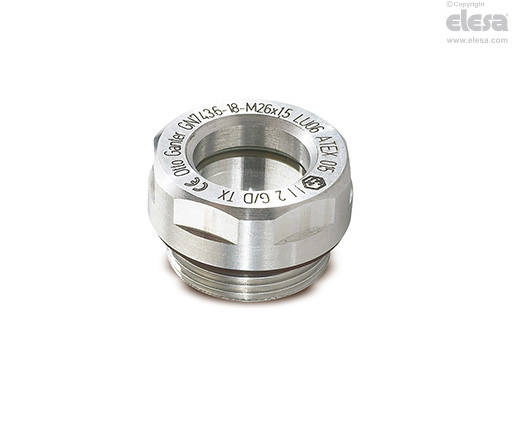

GN 743.6 Oil level sight glasses

Aluminum




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, glossy finish.

Window

ESG safety glass.

Packing ring

FKM type VITON®*.

Maximum continuous working temperature

Up to 150°C (see instructions for use).

ATEX directive compliance

The oil level sight glasses of the GN 743.6 series comply with Health and Safety Requirements intended in 94/9/EC ATEX (Explosive Atmospheres) European Directive for equipments in Group II, category 2GD.

II 2GD Ex h X: is the level sight glasses identification marked on the GN 743.6 product according to ATEX directive

II 2G Ex h IIC TX Gb LU 17 ATEX 0168 U

II 2D Ex h IIIC X °C Db LU 17 ATEX 0168 U

For details, see the instructions for use.

Ambient and/or fluid temperature: -20 ÷ +150 °C.

The documentation concerning the conformity of this product to the European Directives above mentioned and the instructions for use are integral parts of the article itself.

General information

Technical data

GN 743.6 oil level sight glasses can be used on pressurised oil tanks (oil-proof resistance data available on request).The seal between the aluminium body and the ESG glass window is guaranteed by a packing ring in FKM type VITON®*.

Accessories

Accessories on request

Brass nuts with Gas threadings GH. for fitting to reservoirs with wall thickness smaller than 5 mm.

* Registered trademark by DuPont Dow Elastomers.
