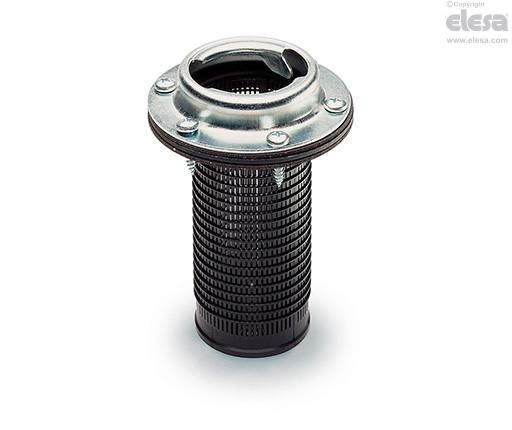

FRB+C Flange with basket

for vertical mounting, bayonet cap, technopolymer



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

  • Flange: zinc-plated steel with bayonet connector.
  • Basket: polypropylene based (PP) technopolymer, black colour.

Packing rings

Cork impregnated MGS based rubber.

Mounting

By means of six zinc-plated steel self-tapping screws TC-N10 (Ø 4.8x19) UNI 6951-DIN 7971, supplied.

FRB+C - Flange with basket
General information

Note

The breather cap to be coupled to the flange is not included in the supply and has to be ordered sepatately.

Depending on the customer's requirements, can be used bretaher caps type SFN., SFP., SFW..

Other executions

Special executions on request

Flange with bayonet connector without basket (FRB).
