GN 8017 (inch sizes) Indexing plungers

with or without rest position, zinc die-cast

Technical datasheet

Select type

GN 8017-B (inch sizes)

Indexing plungers

Without locking nut

GN 8017-BK (inch sizes)

Indexing plungers

With locking nut

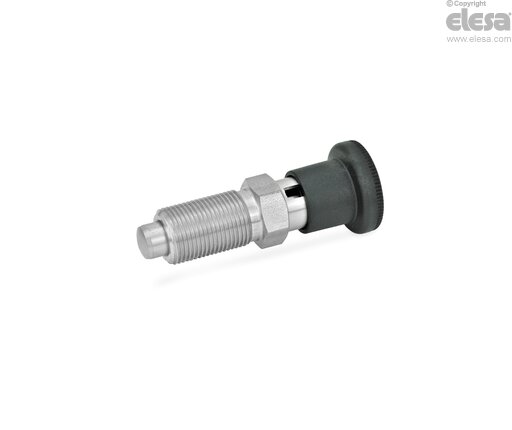

GN 8017-C (inch sizes)

Indexing plungers

With rest position, without locking nut

GN 8017-CK (inch sizes)

Indexing plungers

With rest position, with locking nut

Select item

Technical specifications

Scroll horizontally

Main specifications
General information

Main specifications

Threaded body

Zinc die-cast, zinc plated, blue passivated finish.

Plunger pin

Stainless steel AISI 303.

Knob

Tecnopolymer, Polyamide (PA).

Operating temperature up to 230 °F (110 °C)

Black, matte finish

Not removable

Locking nut

Steel, zinc plated, blue passivated finish.

Spring

AISI 301 stainless steel.

Standard executions

GN 8017-B: without locking nut.

GN 8017-BK: with locking nut.

GN 8017-C: with rest position, without locking nut.

GN 8017-CK: with rest position, with locking nut.

General information

Features and applications

Indexing plungers with lock-out GN 8017 (type C / CK) are used for applications where the plunger pin needs to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in the retracted position.

These zinc die-cast indexing plungers are economically priced.
