BASE LV.F-VD

Bases for levelling feet

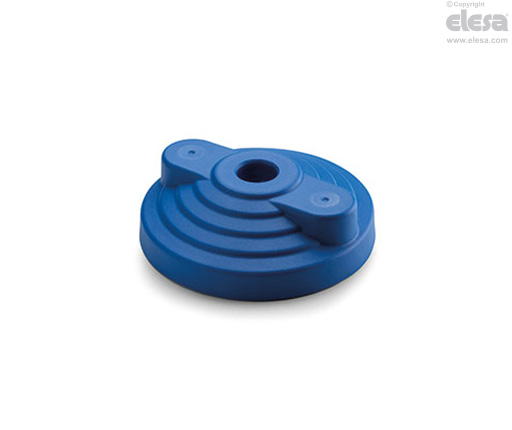

Base for ground mounting, holes at 180°

Material

Glass-fibre reinforced polyamide based (PA) technopolymer, RAL 5005 blue colour, matte finish.

Produced from FDA compliant raw material (FDA CFR.21 and EU 10/2011).

Bases without no-slip disk

• LS.A-VD (D = 25 - 32 - 40 - 50 - 60 mm): base without ground mounting.

• LV.A-VD (D = 60 - 70 - 80 - 100 - 125 mm): base without ground mounting.

• LV.F-VD ( D = 80 - 100 - 125 mm): base with two holes at 180° for ground mounting, supplied covered by a diaphragm (which can be easily removed by a metal tool) to avoid all unhealthy deposits of dirt and dust when only one hole is used (see Fig.1).

Bases with no-slip disk assembled

NBR rubber no-slip disk, hardness 70 Shore A.

The particular assembling system of the no-slip disk to the base assures a perfect anchoring, preventing separation even in case of impact during transport or of adhesion (sticking) to the floor (see No-slip disks).

• LS.A-AS-VD (D = 25 - 32 - 40 - 50 - 60 mm): base without ground mounting.

• LV.A-AS-VD (D = 60 - 70 - 80 - 100 - 125 mm): base without ground mounting.

• LV.F-AS-VD (D = 80 - 100 - 125 mm): base with two holes at 180° for ground mounting, supplied covered by a diaphragm (which can be easily removed by a metal tool) to avoid all unhealthy deposits of dirt and dust when only one hole is used (see Fig.1).
