GN 1366 Hinges

Steel Profile, for Welding

Select type




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Types

  • Type A: without bores
  • Type S: without bores, with lubricating nipple

Steel profile     ST

Rolled, scaled

or drawn, plain     BL

Pin

Steel

Lubricating nipple similar to DIN 71412-A

Steel

Zinc plated, blue passivated

General information

Features and applications

Hinges GN 1366 are made of rolled or drawn steel profiles and are very robust.

Type A and S is fastened by welding or holes created by the customer.

Type S also has a lubricating nipple similar to DIN 71412-A,  which allows quick and easy relubrication without dismantling the hinges.

Thanks to the standard dimensions, special application-specific solutions can be realized even in relatively small quantities.

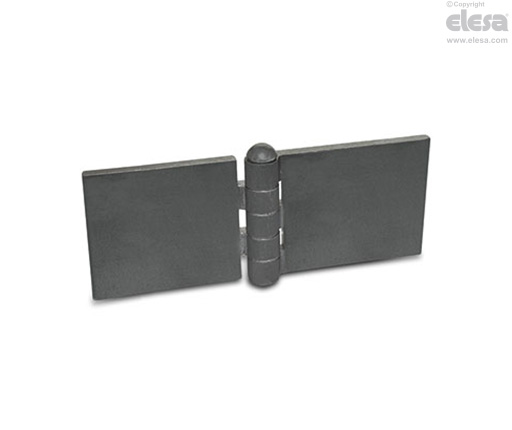

GN 1366-A - Without lubricating nipple
On request

On request

  • With brass pin
  • With holes
  • Other dimensions
  • Other finish types
