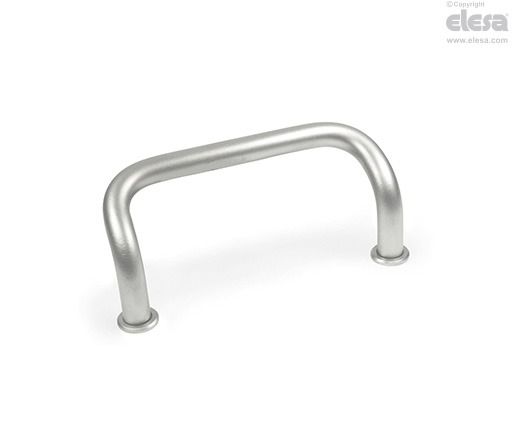

GN 425.1-A4 - GN 425.1-NI

Double-curved handles

Stainless steel

Standard executions

• GN 425.1-CR: round cross section bar, chrome-plated steel. Threaded blind holes.

Nickel-plated zinc alloy base washer (only for d₁ = 8 - 10).

• GN 425.1-NI: round cross section bar, AISI 303 stainless steel (only for d₁ = 8 - 10). Round cross section bar, AISI 304 stainless steel (d₁ = 12). Sandblasted matte finish. Threaded blind holes.

AISI 303 stainless steel base washer (only for d₁ = 8 - 10).

• GN 425.1-A4: round cross section bar, AISI 316L stainless steel, sandblasted matte finish. Threaded blind holes.

AISI 316L stainless steel base washer.

• GN 425.1-AL-EL: round cross section bar, anodised aluminium, natural colour. Threaded blind holes.

AISI 303 stainless steel base washer (only for d₁ = 8 - 10).

• GN 425.1-AL-SW: round cross section bar, aluminium, epoxy resin coating, RAL 9005 black colour, matte finish. Threaded blind holes.

AISI 303 stainless steel base washer (only for d₁ = 8 - 10).
