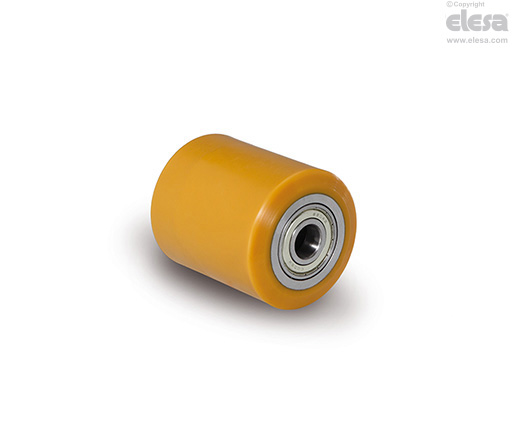

RE.G5 Mould-on polyurethane rollers

Steel centre body

Technical datasheet

Select item

Technical specifications

Scroll horizontally

Main specifications
General information

Main specifications

Covering

Mould-on polyurethane, hardness 92 Shore A.

Lever body

Steel.

Rolling action

Hub with ball bearings. Ideal solution for heavy loads and continuous moving.

General information

Applications

Excellent rolling resistance and elasticity features, high wear and tearing resistance. For selection parameters see Technical data.

Environmental conditions

Suitable for use in environments with the presence of atmospheric agents, alcohols and glycols, use in environments with the presence of organic and mineral acids, basic solutions and saturated vapour is not recommended.

Rolling resistance - force / load applied

For each load and diameter, the table indicates the force (in N) needed to push or pull a single wheel at a constant speed of 4 km/h on smooth ground.

For manual handling of a 4-wheel trolley, it is recommended to choose diameters with values below 50 N; for frequent handling, choose values below 30 N.

Traction force or thrust for wheel movement [N]
		Load [N]
		1000	2000	3000	4000	5000	6000	8000
D[mm]	80x70	10	24	37	51	76	-	-
	80x90	<10	22	31	45	61	78	-
	82x70	10	24	36	50	75	-	-
	82x90	<10	21	30	43	60	76	-
	82x100	<10	20	27	40	56	75	135
	85x40	10	34	60	-	-	-	-
	85x70	<10	23	35	48	72	-	-
	85x90	<10	21	31	47	64	77	-
	85x100	<10	19	26	38	56	72	120

Mechanical moving with towing devices

For mechanical towing, please see the technical specifications to determine the capacity variation.

Temperature

If operating temperatures in an application differ from the standard range of values, please see the technical specifications to determine the capacity variation.
