GN 6303.1 Quick-tightening knurled knobs
Steel
Main specifications
Material
Black-oxide steel.
Standard execution
Pass-through and oblique hole, partially threaded.
General information
Applications
GN 6303.1 knurled knobs are used when quick tightening is required with only a slight clamping force.
Instructions of use
Assembly instructions

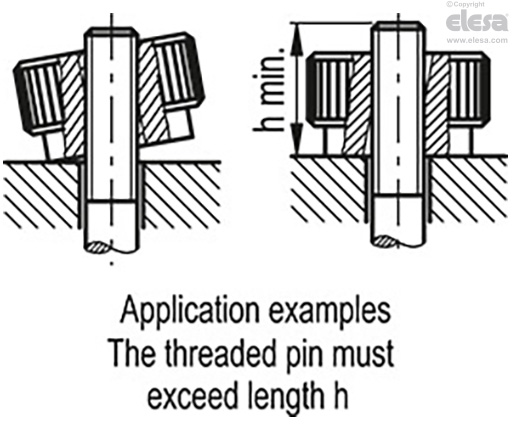

The knob is placed in the axial position so that it fits onto the pin threads. At this point it can be locked with just a slight rotation.
Other executions
Special executions on request
GN 6303.1-NI: quick-tightening knurled knobs in AISI 303 stainless steel.
