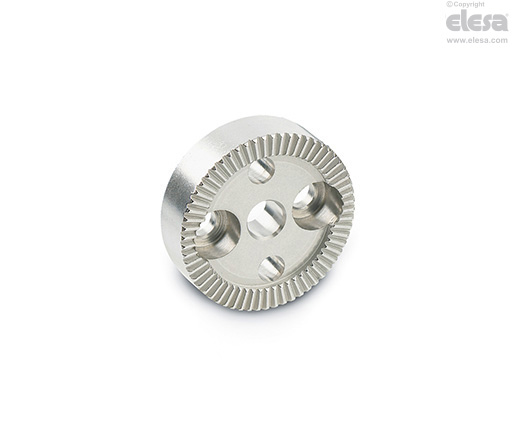

GN 187.4-NI Toothed clamping elements

Stainless steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Sintered AISI 316 LHC stainless steel.

Standard executions

  • GN 187.4-A-NI: with a central threaded pass-through hole, two side holes for cylindrical head screws and two holes for pins that prevent the plate from rotating.
  • GN 187.4-B-NI: with a central plain pass-through hole, two side holes for cylindrical head screws and two holes for pins that prevent the plate from rotating.
  • GN 187.4-C-NI: with a central threaded hole, two side threaded pass-through holes and two holes for pins that prevent the plate from rotating.
  • GN 187.4-D-NI: with a central plain pass-through hole, two side threaded pass-through holes and two holes for pins that prevent the plate from rotating.
  • GN 187.4-E-NI: without holes.
General information

Features and applications

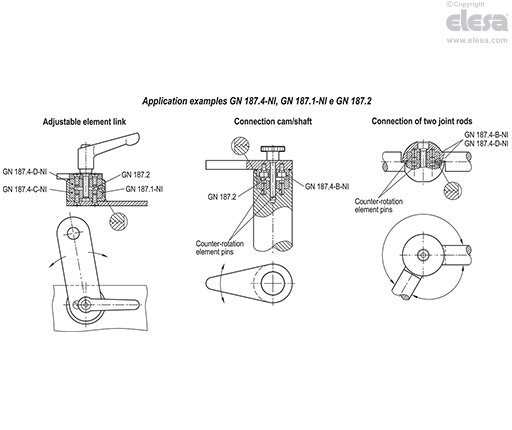

GN 187.4-NI toothed elements are used to secure coupled parts at a given angle.

GN 187.4-NI - Toothed clamping elements
Accessories

Accessories on request

Case GN 187.1.

Push springs GN 187.2.
