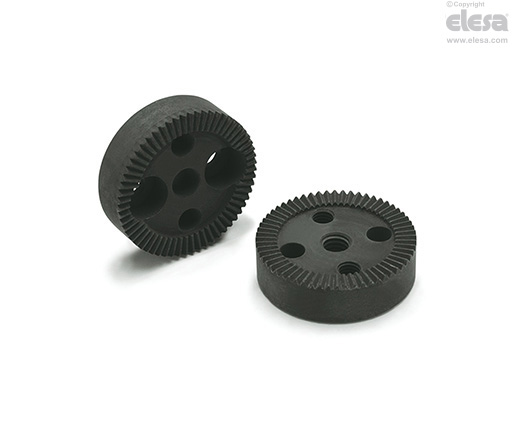

GN 187.4 Toothed clamping elements

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Sintered, nitrided black oxide steel or sintered steel (GN 187.4-E).

Standard executions

  • GN 187.4-A-ST: with a central threaded through hole, two side holes for cylindrical head screws and two holes for pins that prevent the plate from rotating.
  • GN 187.4-B-ST: with a central plain through hole, two side holes for cylindrical head screws and two holes for pins that prevent the plate from rotating.
  • GN 187.4-C-ST: with a central threaded hole, two side threaded through holes and two holes for pins that prevent the plate from rotating.
  • GN 187.4-D-ST: with a central plain through hole, two side threaded through holes and two holes for pins that prevent the plate from rotating.
  • GN 187.4-E-ST: without holes.
General information

Features and applications

GN 187.4 toothed elements are used to secure coupled parts at a given angle.

GN 187.4 - Toothed clamping elements
Accessories

Accessories on request

Case GN 187.1.

Push springs GN 187.2.
