GN 347 Ball joint thrust pads

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Base and nut

Black-oxide steel, class 10 (tensile strength 1000 N/mm2).

General information

Features and applications

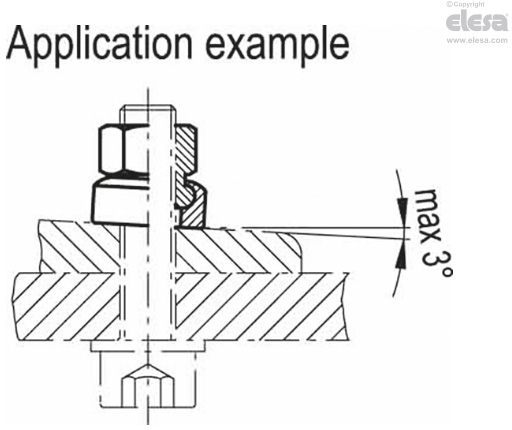

GN 347 hexagon nuts with levelling base are mainly used to lock metal parts with surfaces inclinable by max 3°. The locking plane is not affected by the rotation of the nut.

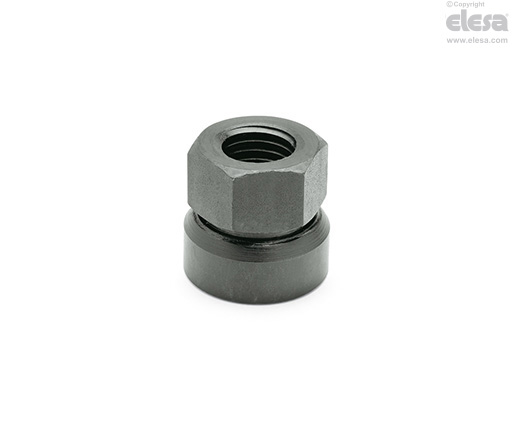

GN 347 - Levelling hexagon nutsﾠ
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
Ganter
