GN 1132 Holding bushings
for GN 1130 lifting lock pins, stainless steel
Main specifications
Material
AISI 630 hardened stainless steel.
General information
Features and applications

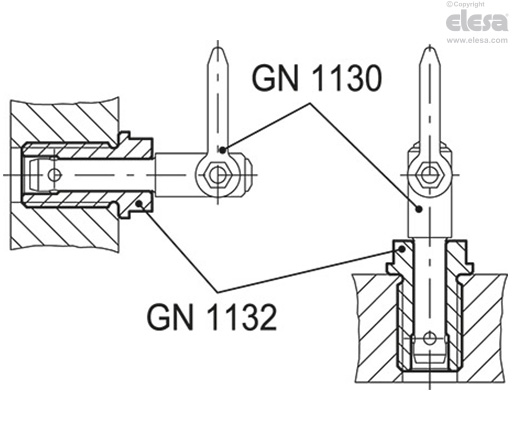

GN 1132 fastening bushings are used together with lifting lock pins GN 1130.
The I1 bushing dimension should be equal to the I1 lifting pin length in order to ensure the load specifications indicated in table GN 1130 corresponding to the x value (insertion length).
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
