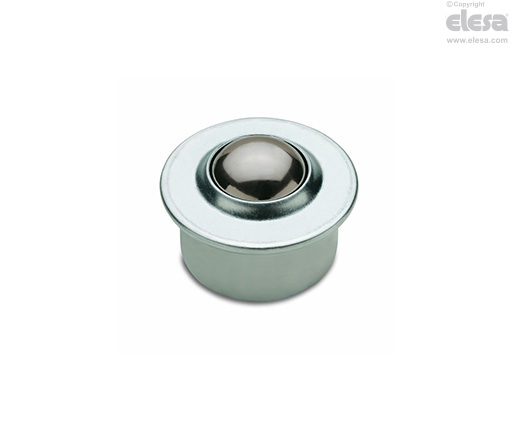

GN 509 Ball transfer units

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Zinc-plated drawn sheet steel.

Retaining components

Zinc-plated steel.

Retaining ring

Felt seal (only for dimensions 22 and 30).

Standard executions

  • GN 509-SBL: steel balls.
  • GN 509-SKU: acetal resin based (POM) technopolymer main ball, steel transfer balls.
  • GN 509-SNI: stainless steel balls.
General information

Features and applications

GN 509 ball transfer units are particularly suitable on conveyor tracks. They make linear or rotary movements easier even with heavy loads (see Technical Data).

Accessories

Accessories on request

Spring rings GN 509.3 stainless steel spring rings allow an easy and quick assembly and removal of ball transfer units GN 509.

Other executions

Special executions on request

Stainless steel body and balls (GN 509-NNI).
