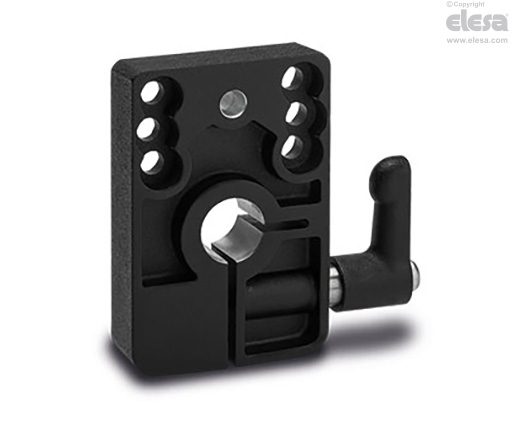

BSA52-E Bases for spindle locking
for position indicators DD52R-E and DD52R-E-RF, zinc alloy
Main specifications
Material
Die-cast zinc alloy bases for spindle locking, epoxy resin coating, black colour, matte finish.
GN 302 adjustable handle with die-cast zinc alloy lever body and AISI 304 stainless steel clamping element.
General information
Features and applications
BSA52-E locking bases allow an easy and quick locking of the spindles after their positioning. Ø 6.1 mm hole to fit the referring pin of the indicator. Handle positioned either on the right or on the left. Fitting to the machine by means of two cylindrical-head screws (not included in the supply).
