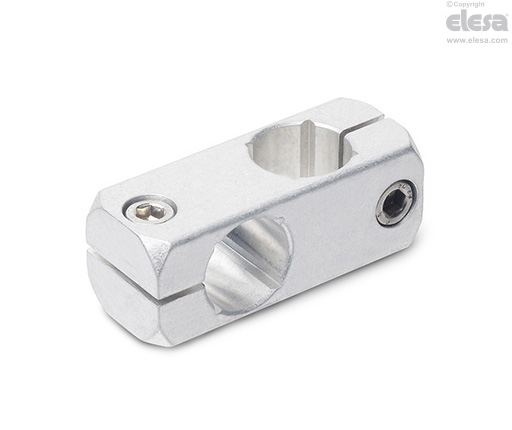

MSM-C Two-way connecting clamps

Ganter Norm GN 474

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium.

Clamping screws

AISI 304 stainless steel with hexagon socket.

Standard executions

  • MSM-C-ANB: anodised aluminium, black colour.
  • MSM-C-MT: natural aluminium, matte finish.
General information

Key to table dimensions

d, d1 = holes diameters for shaft tolerance h11.

d2=clamping screws which can be replaced with clamping kit type GN 511.

MSM-C - Two-way connecting clamps
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
