MSM-H Connecting clamps

Ganter Norm GN 476

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium

Clamping and grub screw

AISI 304 stainless steel with hexagon socket.

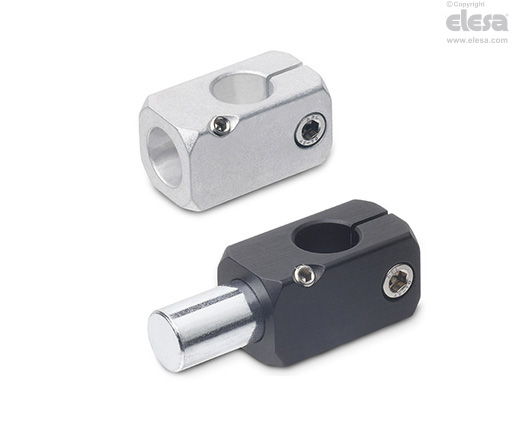

Standard executions

With hole tolerance G8

  • MSM-H-A-ANB: anodised aluminium, black colour.
  • MSM-H-A-MT: natural aluminium, matte finish.

With zinc-plated steel pin with tolerance h9:

  • MSM-H-W-ANB: anodised aluminium, black colour.
  • MSM-H-W-MT: natural aluminium, matte finish.
General information

Key to table dimensions

d = hole diameter for shaft tolerance h9.

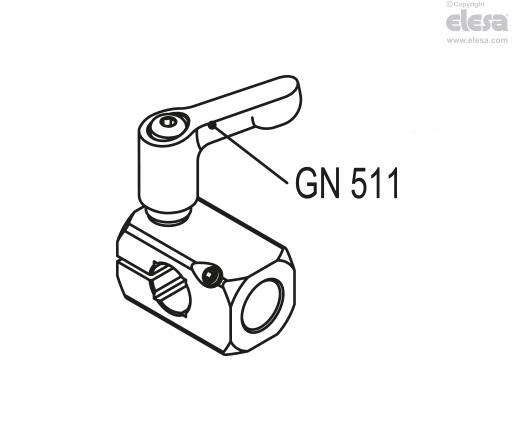

d1= clamping screws which can be replaced with clamping kit type GN 511.

MSM-H - Connecting clamps
