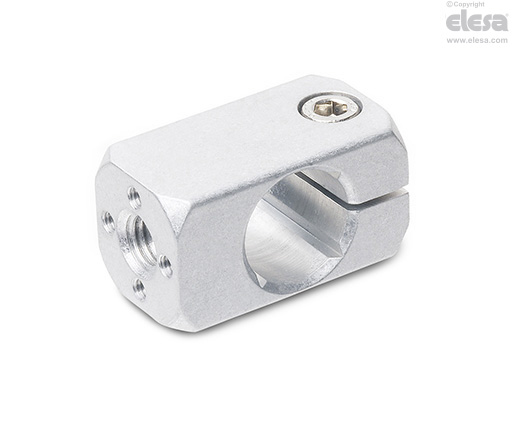

MSM-F Clamps for connecting plates

Ganter Norm GN 478

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium.

Clamping screw

AISI 304 stainless steel with hexagon socket.

Standard executions

  • MSM-F-ANB: anodised aluminium, black colour.
  • MSM-F-MT: natural aluminium, matte finish.
General information

Features and applications

MSM-F connecting clamps have been designed in order to be used with sensor holders type MSM-LA e MSM-LB.

Key to table dimensions

d = hole diameter for shaft tolerance h11.

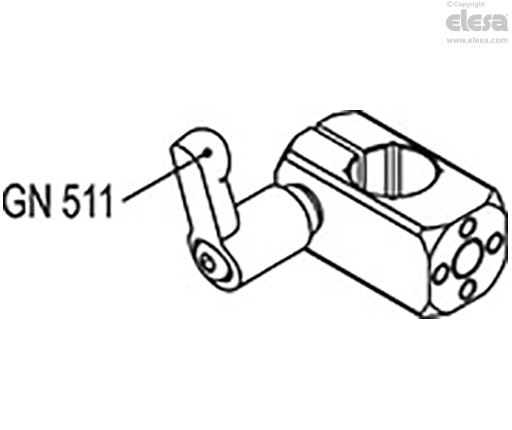

d1 = clamping screws which can be replaced with clamping kit type GN 511.

MSM-F - Clamps
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
