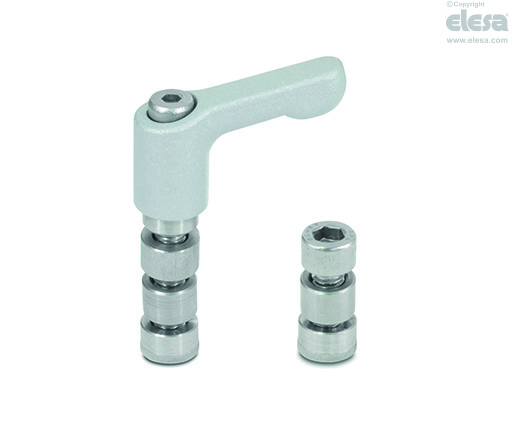

GN 511.1 Clamping kit for pivoting connecting clamps
Zinc alloy and stainless steel
Main specifications
Standard executions
- GN 511.1-S: AISI 304 stainless steel screw.
AISI 303 stainless steel threaded bushing and distance bushing.
- GN 511.1-K: die-cast zinc alloy lever, epoxy resin coating, RAL 9006 grey colour.
AISI 303 stainless steel clamping element, retaining screw, threaded bushing and distance bushings.
AISI 301 stainless steel return spring.
General information
Features and applications
GN 511.1 clamping kit allows the fixing of the different combinations of MSM-R pivoting connecting clamps having the same dimension B.
During assembly, the distance bushing is positioned between the two pivoting connecting clamps, while the knurled threaded bushing is inserted into one end of the two connecting clamps, allowing the fastening of the screw or of the threaded insert at the opposite end up to the locking desired, thanks to the pressure exerted.
The table below shows the dimensions l2 of the various corresponding MSM-R pivoting connecting clamps .
