SQMF Angle brackets for profile structures

Ganter Norm GN 961

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium.

Standard executions

  • SQMF-B-MT: natural aluminium, matte finish.
  • SQMF-B-SW: aluminium, epoxy resin coating, RAL 9005 black colour, matte finish.
  • SQMF-B-SR: aluminium, epoxy resin coating, RAL 9006 grey colour, matte finish.

Closing cap

Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.

Screws and washers

Zinc-plated steel.

General information

Features and applications

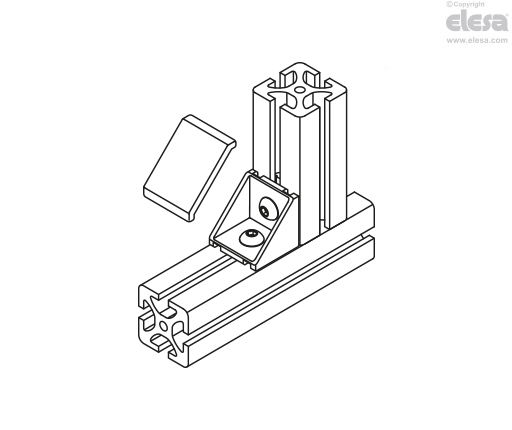

SQMF. fixing angles are particularly suitable for the assembly, in a very easy way, of structures made out of aluminium profiles (dimensions 30/40 mm) for safety protections of machines and equipment.

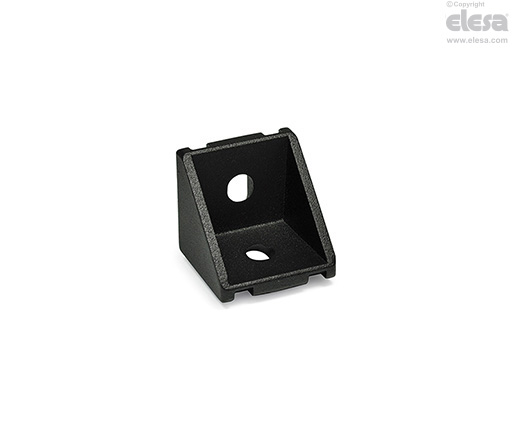

SQMF - Angles for profile structures
Other executions

Special executions on request

Angles without cover, screws and fixing inserts (SQMF-A).

Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
