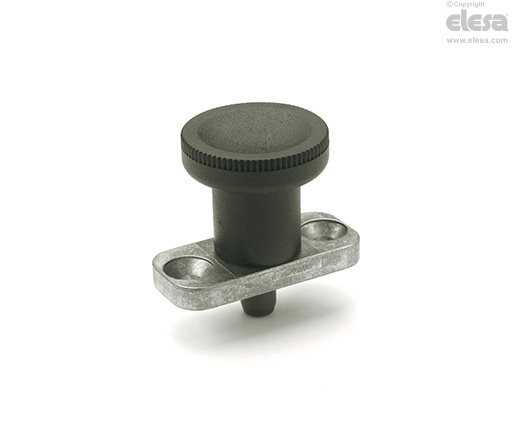

GN 608 Indexing plungers with flange

Zinc alloy



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Base flange

Zinc-plated die-cast zinc alloy with two holes for assembly with countersunk head screws.

Plunger

Black-oxide steel with hardened end.

Suggested tolerance for matching hole = H7.

Knob

High-resilience polyamide based (PA) technopolymer, black colour, matte finish.

General information

Features and applications

GN 608 indexing plungers have compact dimensions and are used on thin sheets.
