GN 7336.7 Indexing Plungers
with clamping knob, steel
Main specifications
Threaded body
Zinc-plated steel.
Plunger
AISI 303 stainless steel.
Suggested tolerance for matching hole = G7.
Knob
Glass-fibre reinforced polyamide based (PA) technopolymer, black colour, matte finish.
Centre cap
Glass-fibre reinforced polyamide-based (PA)technopolymer, colour light grey.
General information
Features and applications

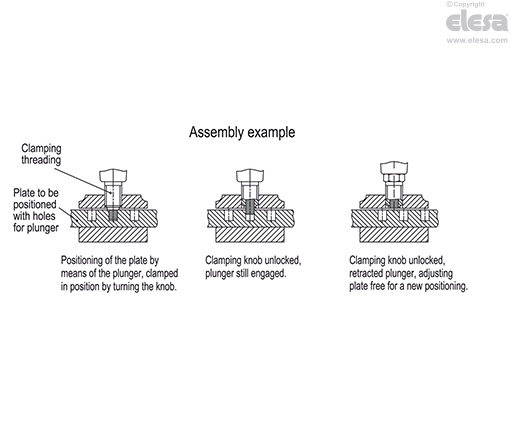

Indexing plungers with locking knob are used to position, to lock and to make secure elements whose position needs to be changed such as guides, plates etc.
By axially lifting the knob, the spring pressure is overcome hence the plunger is retracted, allowing the positioning adjustment. By turning the knob which is connected to the threaded body by means of a special hexagonal insert, the positioning of the plunger is locked.
