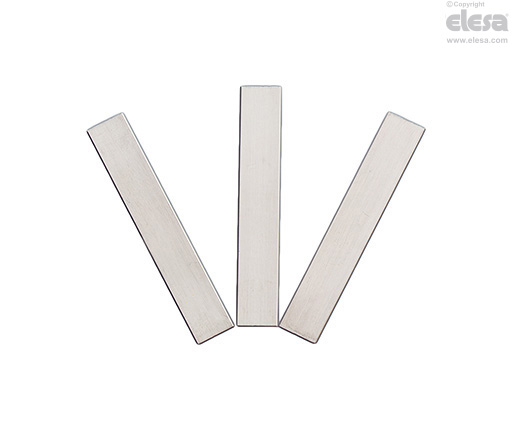

GN 374 Flat springs
for control mechanisms GN 264 and GN 268
Main specifications
Material
Steel.
General information
Features and applications

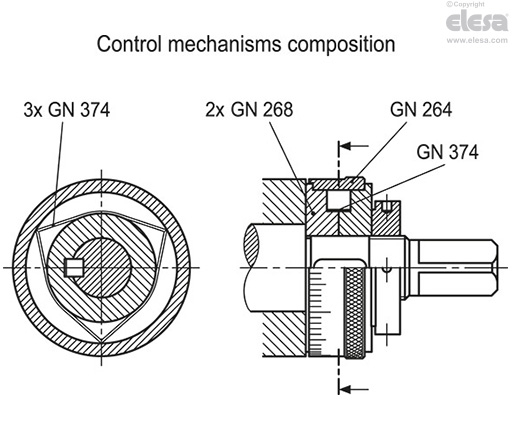

GN 374 flat springs are an excellent and practical element for connecting GN 264graduated rings, shafts and flanges GN 268The assembly with these flanges creates the control mechanism as shown in the drawing.
When the operator sets the shaft, the flat springs guarantee the movement of the graduated ring without the possibility of the same ring to rotate when the shaft does not turn.
