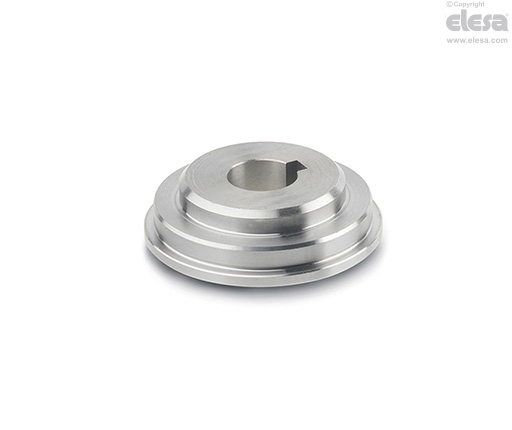

GN 268 Base flanges

for control mechanisms combined with GN 264 and GN 374, steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Natural steel.

H7 reamed hole and keyway in compliance with DIN 6885/1 tolerance P9.

General information

Features and applications

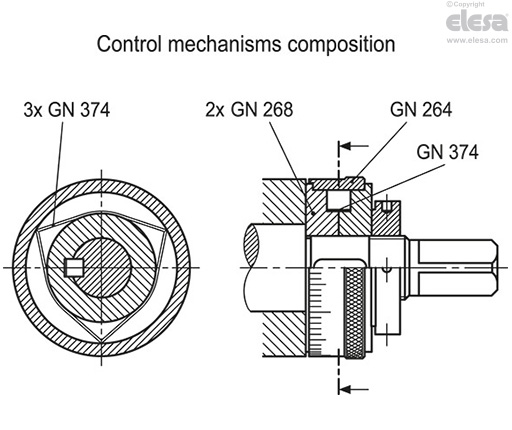

GN 268 flanges are designed to optimize use of graduated rings GN 264 and flat springs GN 374.

GN 268 - Base flanges
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
Ganter
