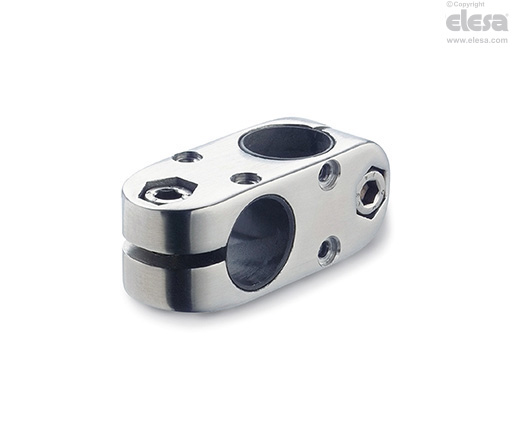

GN 131.2-NI Two-way connecting clamps
for linear actuators, stainless steel
Main specifications
Material
Cast AISI CF-8 stainless steel, sandblasted matte finish.
AISI 304 stainless steel screws and nuts.
Polyamide based (PA) or polytetrafluoroethylene based (PTFE) technopolymer sliding bushings.
General information
Features and applications
GN 131.2-NI connecting clamps can normally be matched with the linear actuators.
By clamping the guide holes d1/d2 it is possible to adjust the actuator positioning and to lock the slider after having set up the final position.
The clamping screws d3 may be replaced by clamping kits GN 911 – GN 911.3.
