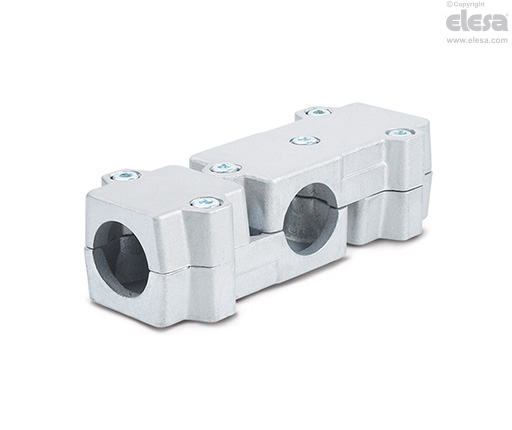

GN 195 T-shaped connecting clamps

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, matte finish.

AISI 304 stainless steel screws and nuts.

Standard executions

  • GN 195-BL: natural aluminium.
  • GN 195-SW: aluminium, epoxy resin coating, RAL 9005 black colour.
General information

Features and applications

The assembly holes of GN 195 connecting clamps allow an excellent match with tubes GN 990.

The clamping screw d2 may be replaced by clamping kits GN 911.

GN 195 - T-shaped connecting clamps
