GN 191 T-shaped connecting clamps

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, matte finish.

AISI 304 stainless steel screws and nuts.

Standard executions

Surface finish index:

  • BL: natural colour.
  • SW: epoxy resin coating resistant to UV rays, RAL 9005 black colour.
General information

Features and applications

The assembly hole of GN 191 connecting clamps allows an excellent match with tubes GN 990.

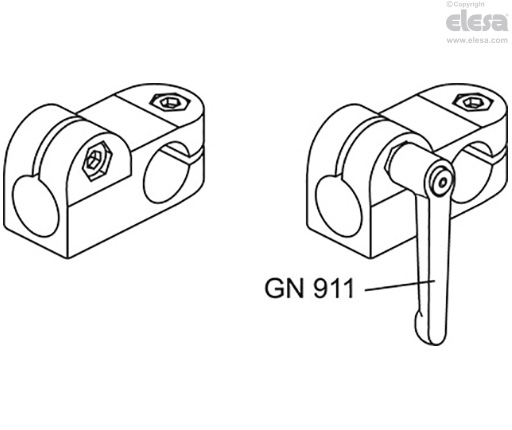

The clamping screw d3 may be replaced by clamping kit GN 911.

GN 191 - T-shaped connecting clamps
Other executions

Special executions on request

Different combinations of holes d1/d2.
