GN 288 Sensor Holders

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, matte finish.

AISI 304 stainless steel screws and nuts.

Standard executions

  • GN 288-BL-S: natural aluminium, with continuous adjustment
  • GN 288-BL-T: natural aluminium, with adjustment by 15° snaps.
  • GN 288-SW-S: aluminium, epoxy resin coating, RAL 9005 black colour, with continuous adjustment.
  • GN 288-SW-T: aluminium, epoxy resin coating, RAL 9005 black colour, with adjustment by 15° snaps.
General information

Features and applications

The assembly hole of GN 288 connecting clamps allows an excellent match with tubesﾠGN 990.

GN 288 connecting clamps are an assembly of connecting clampsﾠGN 276ﾠandﾠGN 278.

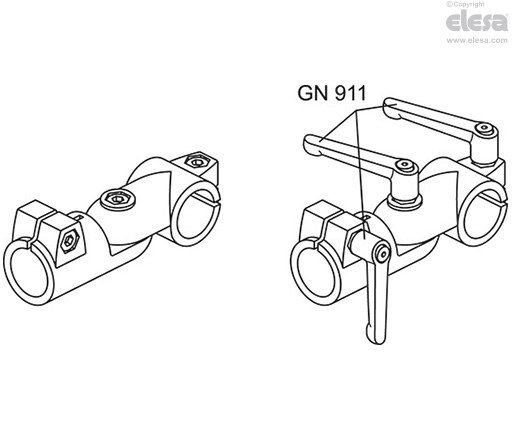

The clamping screws d3 and d4 may be replaced by clamping kitﾠGN 911.

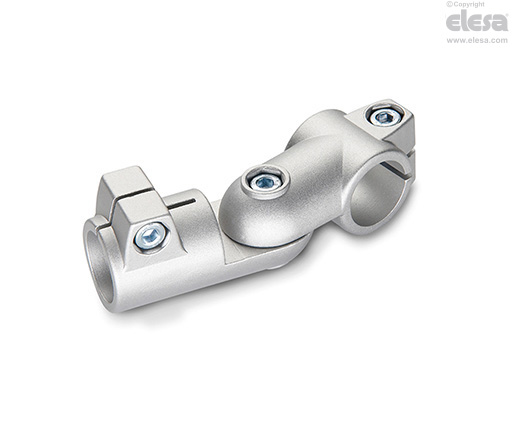

GN 288 - Pivoting connecting clampsﾠ
Other executions

Special executions on request

Different combinations of holes d1/d2.
