GN 273 Sensor Holders

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, matte finish.

AISI 304 stainless steel screws and nuts.

Standard executions

Surface finish index:

  • BL: natural colour.
  • SW: epoxy resin coating resistant to UV rays, RAL 9005 black colour.
General information

Features and applications

The assembly hole of GN 273 connecting clamps allows an excellent match with tubes GN 990.

GN 273 bases can be assembled with pivoting connecting clamps GN 271, GN 275 or GN 277.

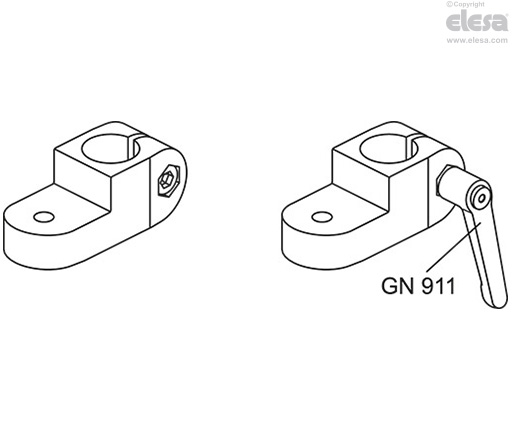

The clamping screw d3 may be replaced by clamping kit GN 911.

GN 273 - Pivoting connecting clamps
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
