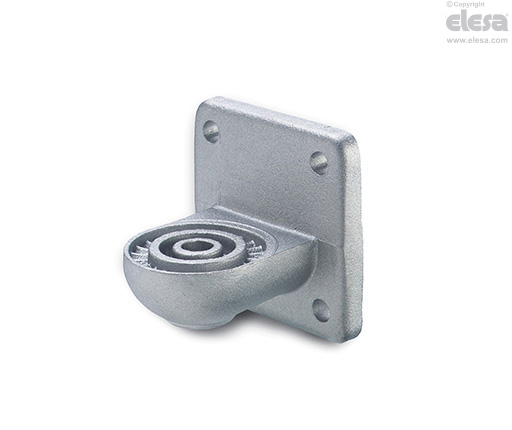

GN 272 Pivoting connecting clamp bases

Aluminum



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Aluminium, matte finish.

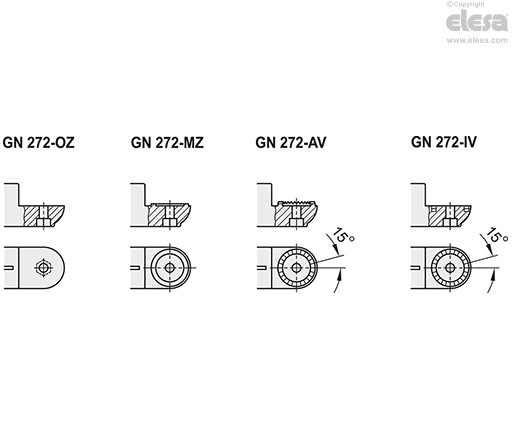

Standard executions

  • GN 272-BL-OZ: natural aluminium.
  • GN 272-BL-MZ: natural aluminium, with embossed centering ring.
  • GN 272-BL-AV: natural aluminium, with embossed toothing.
  • GN 272-BL-IV:: natural aluminium, with flush toothing.
  • GN 272-SW-OZ: aluminium, epoxy resin coating, RAL 9005 black colour.
  • GN 272-SW-MZ: aluminium, epoxy resin coating, RAL 9005 black colour, with embossed centering ring.
  • GN 272-SW-AV: aluminium, epoxy resin coating, RAL 9005 black colour, with embossed toothing.
  • GN 272-SW-IV: aluminium, epoxy resin coating, RAL 9005 black colour, with flush toothing.
General information

Features and applications

GN 272 bases can be assembled with pivoting connecting clamps GN 274, GN 276 or GN 278.

GN 272 - Pivoting connecting clamp bases
Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
Ganter
