GN 391 Connecting units for linear actuators

Steel



Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Guide tube

Chrome-plated steel.

Shaft

Natural steel.

End caps

Polyamide based (PA) technopolymer.

General information

Features and applications

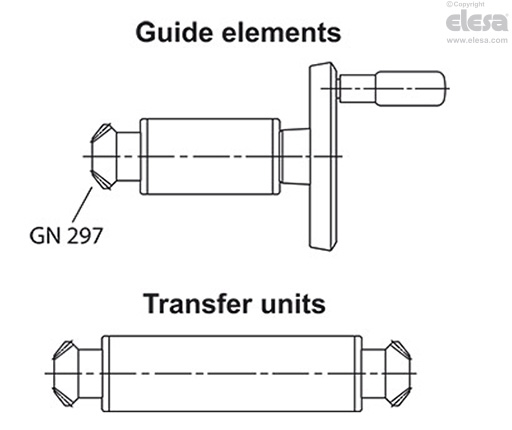

GN 391 connecting units are used with linear actuators GN 291 and GN 292.

They are used to transfer the linear actuator rotating movement to a different position.

By using GN 297- angular gear it is possible to rotate the linear actuator operating axis by 90°.

GN 391 - Connecting units for linear actuators
