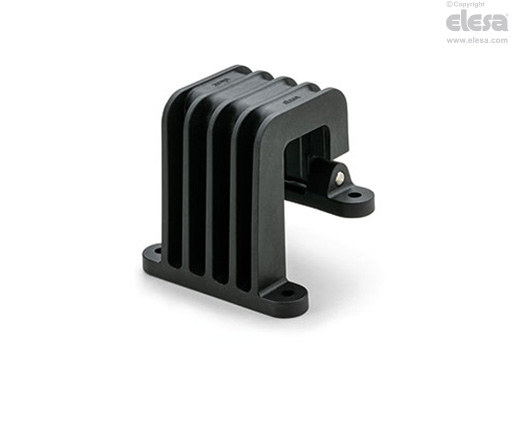

CHG. Concealed hinge

SUPER-technopolymer




Select item

loading

Technical specifications

Scroll horizontally
Main specifications

Material

Glass-fibre reinforced polyamide based (PA) SUPER-technopolymer, black colour, matte finish.

Rotating pin

AISI 304 stainless steel.

Standard executions

Pass-through holes for mounting using studs with nuts, or cylinder head screws with washer UNI 6592.

General information

Features and applications

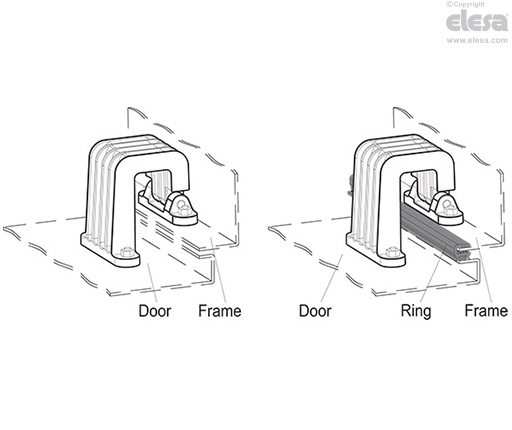

Hinge to be used with doors and frames of boxed structures in folded sheet metal.

Rings can be applied to the door and frame to prevent the entry of dust and foreign bodies.

Rotation angle (approximate value)

Max 180° (-90° and +90° being 0° the condition where the two interconnected surfaces are on the same plane).

Do not exceed the rotation angle limit so as not to prejudice the hinge mechanical performance.

CHG. - Concealed hinge
Resistance tests
Axial Stress (0°)Axial Stress (-90°)Axial Stress (+90°)Radial Stress (0°)Radial Stress (-90°)Radial Stress (+90°)
CHG. - Concealed hingeCHG. - Concealed hingeCHG. - Concealed hingeCHG. - Concealed hingeCHG. - Concealed hingeCHG. - Concealed hinge
Maximum working load
Ea [N]
Load at breakage
Ra [N]
Maximum working load
Ea [N]
Load at breakage
Ra [N]
Maximum working load
Ea [N]
Load at breakage
Ra [N]
Maximum working load
Er [N]
Load at breakage
Rr [N]
Maximum working load
Er [N]
Load at breakage
Rr [N]
Maximum working load
Er [N]
Load at breakage
Rr [N]
390135037511103101340370117039013304901280

The maximum working loads are the loads which lead to a deformation of 2 mm of a single hinge.

Elesa
Models all rights reserved in accordance with the law. Always mention the source when reproducing our drawings and photos.
